Coddington Magnifier

Maker Unsigned

Date Circa 1860
Dimensions English Metric
Thickness 0.8in 21mm
Lens Diameter 1.4in 36mm
Length 3.1in 80mm

Description

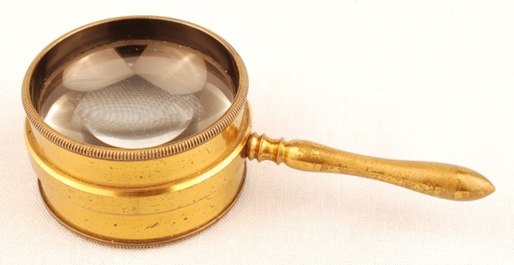

This hand magnifier consists of two lenses attached to each end of a short brass barrel. The lenses are identical plano-convex type and their convex surfaces are positioned facing each other. In the middle of the barrel, between the lenses, is a large diameter stop. This configuration gives the magnifier the appearance and performance of a Coddington lens, which is a single thick lens cut from a glass sphere with a groove cut around the middle, acting as a stop. The working distance on the magnifier is very short and it focuses very near the object. It has a short handle. There is no makerís signature.
